John Deere Tractor Parts
 |
|||
Closest thing to sunlight. |
|||
 Illuminate your path with the newest LED work lights from John Deere. Thanks to the super-bright lighting, you can work around the clock with better visibility. These LED work lights add more radiance to brighten your night, while at the same time reducing eye strain. As an added feature, energy consumption on the LED lamp is as much as 75 percent less than a halogen-type light, resulting in less drain on your alternator and battery. LEDs offer morethan 44 times the expected lifespan of sealed-beam halogens, and with our expanding selection of LED products, it’s easy to get more bang for your buck. Ask us about installing LED work lights on your tractor today. |
|||

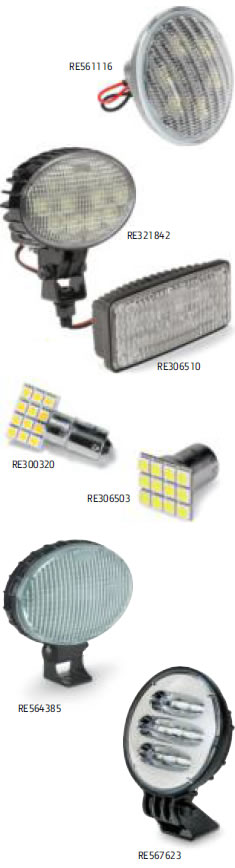

LED Lights |
|||
|
Need extra light when working at night? Increase available light while conserving power and reducing the load on your alternator with our new Light Emitting Diode (LED) work lamps. These lights, which are available in both food and trapezoid beam patterns, offer 44 times the lifespan of sealed-beam halogen lights, and reduce energy consumption by up to 75 percent. The John Deere LED lumen rating is based on “effective” lumens. Some competitors’ claims use the “raw” lumen output, which can infate the perceived output quality. |
|||
|
NUMBER |
DESCRIPTION |
APPLICATION |
|
 |
RE561116 | PAR36, Flood, 960 Effective Lumens (37% Increase over Previous Model) | Upgrade for 20-60 Series Tractors |
| RE561117 | PAR36, Trapezoid, 960 Effective Lumens (37% Increase over Previous Model) |
Upgrade for 20-60 Series Tractors | |
| RE306510 | 2 x 5 Rectangle Lamp, 575 Lumens |
6000, 6010, 7000, 7010, 8000, 8000T, 8010, and 8010T Series Tractors | |
| RE340681 | 2 x 5 Rectangle Lamp, 575 Lumens |
4X50, 4X55 and 4X60 Series Tractors | |
| RE300320 | LED dome light | Fits 7020-7030 Series and 8020-8030 and 9020-9030 Series Wheel and Track Large-Frame Tractors, and 4700, 4710, 4720, 4920, and 4730-4930 Sprayers | |
| RE306503 | LED dome light | 4040, 4050, 4055, and 4060 Series Tractors |
|
| 3 x 5 Rectangle Lamps | |||
| RE330060 | LED Pedestal mount, 700 Lumens | 7000, 7010, 8000, and 8010 Series Tractors, Wheel, and Track | |
| RE330061 | LED Beltline, 700 Lumens | 7000, 7010, 8000, and 8010 Series Tractors, Wheel, and Track | |
| RE330062 | LED Pendant/Bottom mount, 700 Lumens | 7000, 7010, 8000, and 8010 Series Tractors, Wheel, and Track | |
| RE342545 | Forward Flood, 700 Lumens | 7000, 7010, 8000, and 8010 Series Tractors, Wheel, and Track | |
| NEW LEDs | |||
| Lower Output | |||
| RE564385 | Flood, 700 Effective Lumen (35% Increase over Previous Model) | General Purpose LED, Very Lightweight, Mount Anywhere | |
| RE564386 | Trapezoid, 700 Effective Lumen (35% Increase over Previous Model) |
General Purpose LED, Very Lightweight, Mount Anywhere | |
| Medium Output | |||
| RE321841 | Flood, 1400 Effective Lumen | LED Upgrade for Fender Lighting | |
| RE574753 | Trap, 1400 Effective Lumen | LED Upgrade for Fender Lighting | |
| RE567623 | Flood, 1010 Effective Lumens | 6000, 6020, 6030, 6M, 7030 Series Tractors | |
| Highest Output | |||
| RE322781 | Flood, Oval Pedastal, 3000 Effective Lumen | Broader Light Pattern than HID, Perfect for Large Implements |
|
| RE336866 | Trap, Oval Pedestal, 3000 Effective Lumen |
Broader Light Pattern than HID, Perfect for Large Implements |
|
Voyager Camera System |
|||
 |
Add a camera and get a whole new view! The 6R, 7R, 8R, and 9R Series Tractors come equipped with built-in video capability for those who want better visibility when operating large machinery. You can use Voyager cameras, cables, and a special adapter harness on the new R Series Tractors equipped with the touchscreen Command Center or the GreenStar™ (GS3) 2630 display. These units can utilize one video input. | ||
|
NUMBER |
DESCRIPTION |
APPLICATION |
|
| SWVCCS150B | Voyager Camera with Mounting Bracket |
6R/7R/8R/9R Series Tractors | |
| SWCEC25 | 25-ft. Extension Harness | 7R/8R/9R Series Tractors | |
| SWTY26834 | Adapter Harness -R Tractors | 7R/8R/9R Series Tractors | |
| SWTY26845 | Adapter Harness IVS 2630 Monitor |
7R/8R/9R Series Tractors | |
| SWTY27027 | 6R Camera Harness Kit | ||
Dual USB Adapter |
|||
 |
The Dual USB Adapter is able to charge two electronic devices simultaneously,including mobile phones, tablets, PDAs, GPS units, and MP3 players, from your equipment’s cigarette lighter socket. Each USB port supplies 5V 2.1A, enough power for your charging needs while providing overload protection. *Not compatible with Samsung™ Galaxy tablets |
||
|
NUMBER |
APPLICATION |
||
| RE566705 | Cab Equipment Outftted with Cigarette Lighter Adapter | ||
Multi-Power Outlet Strip |
|||
| Six electrical outlets give either permanent or ignition key-controlled power for items, such as implement monitors and implement supplies. Twelve-volt and up to 30-amp of total current can be taken from these outlets. | |||
|
NUMBER |
DESCRIPTION |
||
 |
AL158785 | Multi-power outlet strip. Fits 6020 and 7020 Series Cab Tractors. | |
| RE68495 | Multi-power outlet strip. Fits John Deere tractors, combines, sprayers, and other self-propelled equipment. | ||
| Additional components for Multi-Power Outlet Strip: | |||
| RE67015 | Three-way convenience outlet adapter | ||
| RE67014 | Cigarette lighter adapter | ||
| RE67013 | Standard connector with 3-ft. cable | ||
Advent 12V Refrigerator/Warmer |
|||
 |
Ideal for long days in the feld, this 7.1-liter refrigerator/warmer holds up to nine 12-oz. cans of your favorite cold beverages. If you’d rather warm your belly on a cold day in the cab, you can convert this unit to a food and beverage warmer in under an hour. Compatible with tractors, combines, trucks or inside any other machine with a cab. Features: ■ Cools down to 40°F in 60 minutes ■ Warms up to 140°F in 60 minutes ■ Holds 7.5 quarts or up to nine 12-oz. cans or four 20-oz. bottles ■ 12-ft. power cord |
||
|
NUMBER |
DESCRIPTION |
||
| SWREF12V | Refrigerator/Warmer, 12V | ||
 |
|||
Add More with John Deere attachments |
|||
|
Add more convenience with our Mounting Bracket Kit with Ram Mounts. With the ability to mount and adjust key controls and displays, you can customize your cab to fit the way you work! Available for most cab tractors. |
With thousands of attachments to
Add More potential to what you can |
||
Accessory Mounting Bracket Kit |
|||
 |
The new mounting bracket kit allows the operator to mount, adjust, and position key controls and displays within the cab for maximum accessibility without compromising visibility. The new John Deere design can be used in multiple confgurations and tailored to the specifc machine and task. | ||
|
NUMBER |
DESCRIPTION |
APPLICATION |
|
| RE343680 | Accessory Mounting Bracket Kit** | Works with Utility, Row Crop, and Four Wheel Drive cab tractors, or wherever additional monitors are needed | |
| **RE343680 contains: R343682 (1), R343683 (2), RE343685 (2) and necessary hardware. | |||
Cell Phone Bracket Kit |
|||
 |
The RAM® X-Grip™ has a clever four-leg design that features great holding power without hiding your phone behind foam pads and plastic. The perfect complement to modern John Deere cabs, the RAM X-Grip is compatible and interchangeable with a wide range of popular RAM Mounting and John Deere products. Key benefts: ■ Patented X-Grip holder fts most cell phones on the market today and similar devices to an iPod®, iPhone®, BlackBerry®, and others ■ Mounts to cab posts and monitor brackets ■ Ball joints allow for variable positioning ■ Holds frm even in rugged terrain or uneven applications Made in the USA |
||
|
NUMBER |
DESCRIPTION |
APPLICATION |
|
| BRE10015 | Cell phone mount bracket kit (includes RE558821, RE558819, and RE558822) | Sized to attach directly to cabs equipped with 10mm threaded bosses. Can be used with RE343680, RE162262, RE245374, and RE317435. Works with Utility, Row Crop, and Four Wheel Drive cab tractors, or wherever additional monitors are needed. | |
| For proper machine operation it is critical that accessory devices and tools be located and mounted where they are accessible, but do not interfere with visibility and controls. The new RAM mount kits have been specially developed to meet this need in John Deere tractors. | |||
RAM Tablet Mount Kit |
|||
 |
The high strength composite design allows for the user to secure their tablet without restricting any access to the existing audio jacks, USB, power, and other ports on the tablet. Compatibility: ■ Apple® iPad, iPad 2, iPad 3 with/without a light duty case ■ HP Touchpad with/without a light duty case ■ Most 10" Screen Tablet Devices Key Benefts: ■ Mounts to cab posts and monitor brackets ■ Ball joints allow for variable positioning Made in the USA |
||
|
NUMBER |
APPLICATION |
||
| BRE10034 | Can be used with RE343680, RE162262, RE245374, and RE317435. Works with Utility, Row Crop, and Four Wheel Drive cab tractors, or wherever additional monitors are needed. |
||
| For proper machine operation it is critical that accessory devices and tools be located and mounted where they are accessible, but do not interfere with visibility and controls. The new RAM mount kits have been specially developed to meet this need in John Deere tractors. | |||
Accessory Mounting Bracket and Tray Kits |
|||
 |
The Accessory Mounting Bracket Kit provides a low cost solution for all of your mounting needs in the cab environment. Whether you are mounting a monitor or any of the accessories offered by John Deere, this bracket will help to optimize and organize your space within the tractor cab. Similar to all of our other John Deere mounting brackets, this bracket is constructed with heavy duty materials and is easy to install. The Accessory Tray Kit can be used on any of our Accessory Mounting Brackets. This tray kit will provide you additional space to store whatever you need while you are operating the tractor. Designed to be installed on either the top of the bar or below, this tray can be placed in any location you need, providing easy access to items. Application: 7020, 7030, 8000, 8010, 8020, 8030, 9020, 9030 Series Tractors. |
||
|
NUMBER |
DESCRIPTION |
||
| BRE10141 | Accessory Mounting Bracket Kit – Long Bar | ||
| BRE10142 | Accessory Mounting Bracket Tray | ||
Self-leveling Cup Holder Kit |
|||
 |
Self-leveling cup holder allows operator to work in extremely rough feld conditions, steep inclines or gradients and not spill their beverage. | ||
|
NUMBER |
APPLICATION |
||
| BRE10152 | Mounts to existing cab bosses in corner posts or optional RE343680 Accessory Mounting Bracket. Found Above |
||
Instructional Seat |
|||
| This top-quality seat comes complete with a retractable seat belt that bolts securely to the cab. Seat features rear netting for additional cab storage. | |||
|
NUMBER |
APPLICATION |
||
 |
RE192707 | Fits 7720-7920, 8100-8400,* 8100T-8400T, 8110-8410, 8110T-8410T, 8120-8520 and 8120T-8520T Row-Crop Tractors; and 9300T-9400T and 9320T-9520T 4WD Tractors; 4940 Sprayer, 4730-4930 Sprayers, 4720/4920 Sprayer | |
| RE195932 | Fits 9100-9400 and 9120-9620 4WD Tractors | ||
| LVB25717 | Fits 5M and 5025, 4630 Sprayer, 5E, 5MH, 5025 HC, 5025 Orchard Series Tractors | ||
| AL173569 | 6020, 6030, 6030 Prem, 7030, 7030 Prem, Current 6M Series Tractors | ||
| *For the following tractors, also order (1) R184251 bracket, (1) RE174406 upholstery, and (1) R131751 bracket: 8100 (–010005), 8200 (–010002), 8300 (–010004), and 8400 (–010004). | |||
Command ARM Bracket for Mobile Device |
|||
 |
The new CommandARM bracket offers a safe and convenient way to mount a cell phone or tablet to the CommandARM. Pair it with one of our cell phone brackets or tablet mount kits for easy use of your mobile devices. Compatible with all 7R, 8R, 9R, and FT4 tractors. Includes bracket and mounting hardware only. Cell phone and tablet mount brackets sold separately. Not compatible with joystick, 2630, or GSix displays. | ||
|
NUMBER |
DESCRIPTION |
||
| BRE10147 | Bracket, Mobile Device Mounting Kit | ||
Toolbox |
|||
| Keep tools handy and organized while you’re on the job with a John Deere toolbox. Built from weather-resistant material for greater durability, these toolboxes provide ample space for your critical tools and parts. | |||
 |
NUMBER |
DESCRIPTION |
|
| RE275591 | Metal toolbox. Fits 5105-5205, 5010N, 5020-5030, 7030 Prem, 7010, 8010, 8020, 8020T, 9020, 9020T, 7720-7920, 7630-7930, and all 8000 and 9000 Series Tractors. | ||
Quick-Hitch |
|||
 |
Made from high-strength tubular steel. Box-welded to provide long life and handle the increased lift capacity of today’s high-performance tractors. | ||
|
NUMBER |
DESCRIPTION |
||
| PMQH100 | Black Quick-Hitch. Fits Category I implements. | ||
| PMQH101 | Green Quick-Hitch. Fits Category I implements. | ||
| LVB25976 | Green iMatch Quick-Hitch. Fits Category I implements. | ||
| TY16042 | Green Quick-Hitch. Fits Category II implements. | ||
| TY16043 | Green Quick-Hitch. Fits Category III implements. | ||
| TY16044 | Green Quick-Hitch. Fits Category III-N (narrow) implements. | ||
Rear Work Light |
|||
| Increase illumination from the back of your tractor. Adding rear-mounted Roll Over Protection Structure (ROPS) lights project 55 watts of light from open operator-station tractors. | |||
 |
NUMBER |
APPLICATION |
|
| LVB25547 | Fits 1023E, 1026R, 2020, 3020, 4020, 4105, 5D, and 5E Series Tractors | ||
| LVB24853 | 3000 TWENTY and 4000 TWENTY Cab Tractors only | ||
Front Mount Utility Box Kit and Bracket Kit |
|||
  |
The John Deere utility box can be utilized for all your storage needs. It can hold additional tools, hardware such as hitch pins and hammer straps, and it serves as chain and grease storage. The weather stripping will keep your contents dry from the rain and clean from the dust. The box mounts to your front weight support with as few as four (4) suitcase weights or a full rack of weights, thus allowing you to mount the utility box to the weight bracket of your tractor without sacrifcing any ability or ballast for your machine. BRE10151 – Front Mount Utility Box ■ Assembly in under 10 minutes ■ Top lid and front door provide quick access to box contents ■ Removable shelves for customizable storage options ■ Extra heavy-duty construction withstands even the harshest environments BRE10153 – Bracket Kit ■ Patent pending mounting system designed specifcally for BRE10151 and future attachments ■ Unique bracket design allows the installation of the Utility Box, without removing any suitcase weights |
||
|
NUMBER |
DIMENSIONS |
APPLICATION |
|
| BRE10151 | Height: 360.6mm / Width: 632.3mm / Depth: 270.1mm |
Fits Row-Crop and 4WD tractors equipped with a Front Weight Support bracket and minimum of four front weights | |
| BRE10153 | Bracket Kit | ||
Telescopic Mirrors |
|||
| Telescopic rearview mirrors provide operators with a wide rear view of the feld or road. These mirrors are especially useful when towing wagons or large implements. | |||
|
NUMBER |
DESCRIPTION |
APPLICATION |
|
 |
AL80126 | Left-Handed, Manual Adjustable |
Fits 5020, 5025, 5E, 5M, 6000-6030, 6215-6715, and 7000-7030 series tractors |
| AL80127 | Right-Handed, Manual Adjustable |
Fits 5020, 5025, 5E, 5M, 6000-6030, 6215-6715, and 7000-7030 series tractors | |
Step Kits |
|||
| It’s easy to get on and off your “everyday” John Deere tractor with this threeposition, adjustable step kit. Bolts securely to the tractor frame and battery box in just 30 minutes. Features wide steps with serrated-tread design. Compatible with most loaders, saddle tanks and other tractor-mounted equipment. | |||
 |
NUMBER |
APPLICATION |
|
| RE61690 | Fits 30-55 Series Row-Crop Tractors | ||
| RE62856 | Fits 3010, 3020, 4010, and 4020 Series Row-Crop Tractors | ||
| RE163104 | Third step for above kits | ||
 |
|||

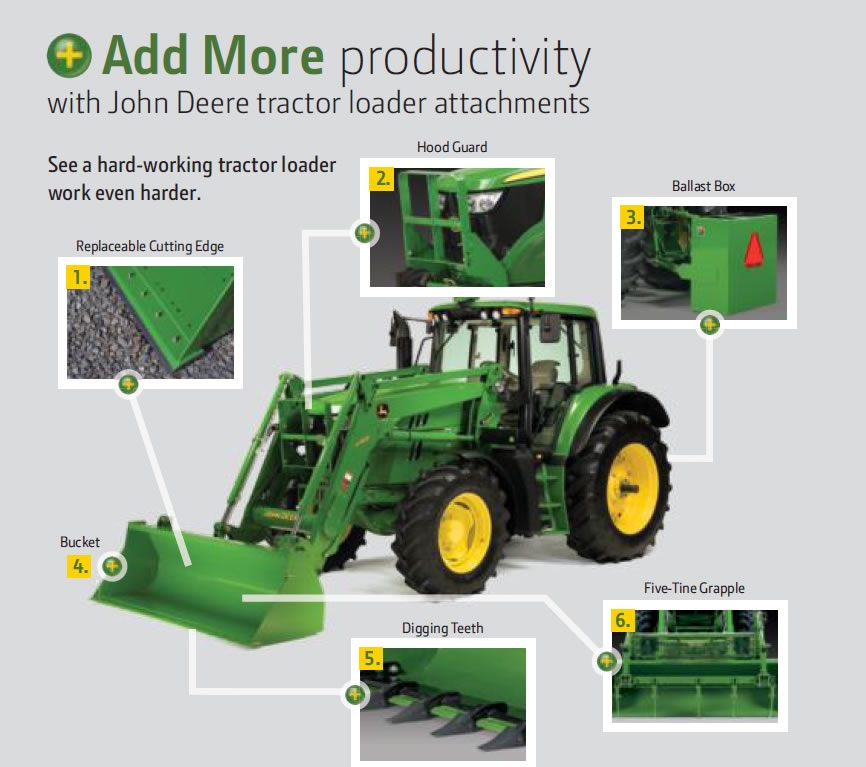

| 1 | Replaceable cutting edge | 3 | Ballast box | 5 | Digging teeth |
| Effectively extend the life of your bucket with a replaceable cutting edge. BW15819 – 1680 mm (66 in.) BW14763 – 1850 mm (73 in.) BW14267 – 2150 mm (85 in.) BW13910 – 2300 mm (91in.) BW14269 – 2450 mm (96 in.) |
Get greater tractor stability with additional ballast.
|
Add More versatility by applying digging teeth to heavy-duty buckets. The result is easier digging in hard ground. BW15227 – 1550 mm (61 in.) BW15589 - 1680 mm (66 in.) BW15228 – 1850 mm (73 in.) BW15763 – Heavy Duty Bucket |
|||
| 2 | Hood guard | 4 | Bucket | 6 | Five-Tine grapple |
| Protect your tractor’s grill and radiator rom brush and workplace hazards. BW15219 – 3020 Series Utility Tractors BW12980 – 30-55 Series Row Crop Tractors BW15892 – 6M and 6R Series Tractors BW15800 – 6D Series Tractors BW15922 – 7R Series Tractors BW15907 – 8030 and 8R (-90,999) Series Tractors |
Buckets options add versatility. Material bucket, Heavy Duty Bucket, High Volume Bucket.
|
Add a fve-tine grapple for increased loader durability and load-carrying capacity. BW16161 – H - Series Loaders |
|||
| This is just a partial sampling of John Deere loader attachments. Please see us for complete listings and specifc applications. |
|||||
