Cotton Module Weighing System Retrofit
John Deere is pleased to introduce a new field installed cotton module weighing system for cotton harvesters. The weighing system may be installed on all MY15-16 CP690 and CS690 harvesters. The cotton module weighing system is standard on all MY17+ CP690 and CS690 cotton harvesters.

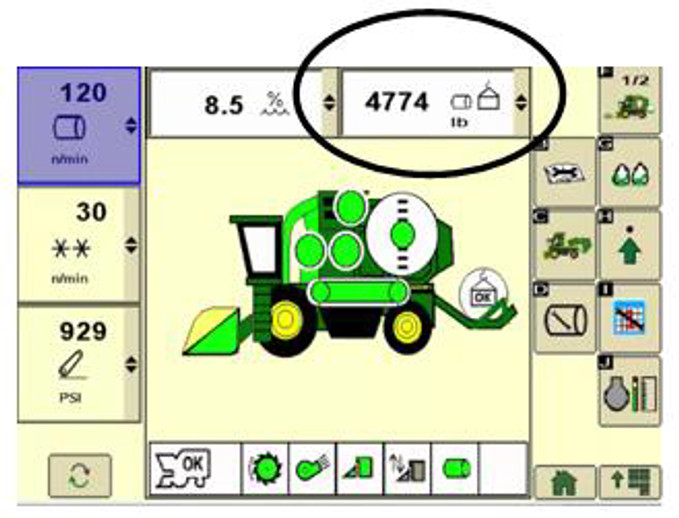

The cotton module weighing System retrofit kit provides on-the-go cotton module weights to the cab display that enables easier yield monitor calibration for more accurate harvest yield data and agronomic decisions. When coupled with Harvest Identification and Cotton Pro, module weights may be automatically document for record keeping and provided to ginners to be loaded into their system.

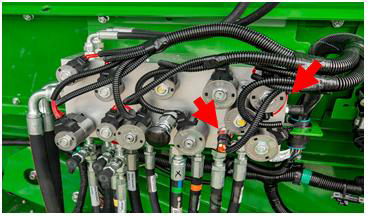

Kit includes new valve block assembly that includes:
- (2) new pressure sensors
- New valve block harness
- New block with sensor anchor points
- Coils pre-assembled into valve block
Part Number: AKK25966
